Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

Name: Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
Brand: Jetacon
Price: 1 USD

Quality Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal for sale

Place of Origin : Guang Dong

Brand Name : Jetacon

Certification : UL, CE

Model Number : OC-DIS 2CH

MOQ : 2 pieces

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T, L/C, Paypal, Payoneer

Supply Ability : 1KK poles monthly

Power Supply : DC14-36V, 24V typical

Singal input : HTL 5V-24V

Signal output : TTL 5V Below

Application : Electronic handwheel, PLC controllers e.g

Contact Now

The main converter purpose is to change OC (open collector) HTL signal ( 5V - 24V ) into TTL ( 5V ) impulse signal or differential signal

Support A, B, and Z three-phase differential simultaneous conversion
Industrial Temperature Range: - 45 ~ + 85 ℃

Introduction:
1. The main converter purpose is to change OC (open collector) HTL signal ( 5V - 24V ) into TTL ( 5V ) impulse signal or differential signal , 2 channels, electrical isolation between input and output, control the PLC Servo system
2. Working frequency: 2000000Hz
3. The Iutput mode: Accept All NPN or PNP PLC interface .
4. Installation: DIN35mm rail mounting,convenient and quick.
5. Product Size: 53mm x 87mm x 35mm
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)

Package Included:
1 * Differential to Collector
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.

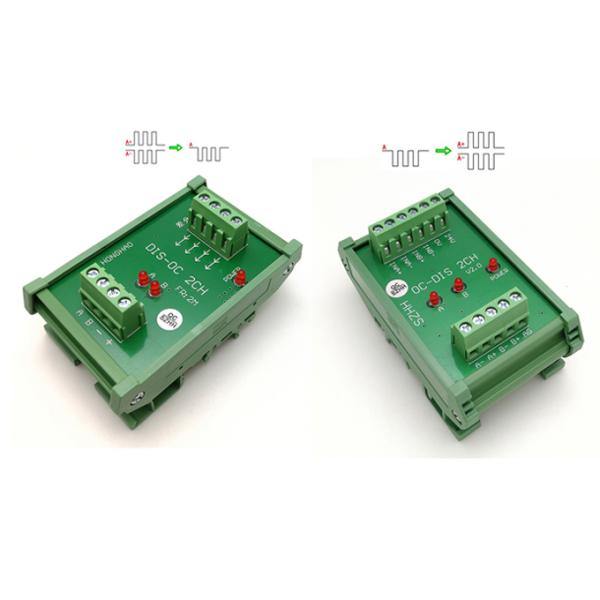

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

Actual Singal Input output test result as below ( X1 input ==> A+ A- ouput )
